Fuel Tank Removal/Installation
>>
Joint Hose Installation Note
Joint Hose Installation Note
Install the joint hose and clamp as shown in the figure.

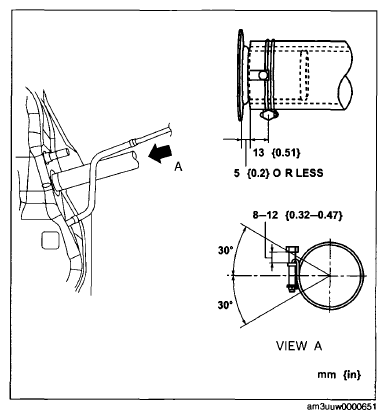

Fig 1: Identifying Joint Hose And Clamp Dimension
Courtesy of MAZDA MOTORS CORP.
