Liftgate Lock Actuator Inspection

  1. Disconnect the negative battery cable.
  2. Remove the following parts
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION ).
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION ).
    3. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION ).
    4. Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION ).
  3. Press the latch in using a Flathead screwdriver to inspect the latch lever condition.

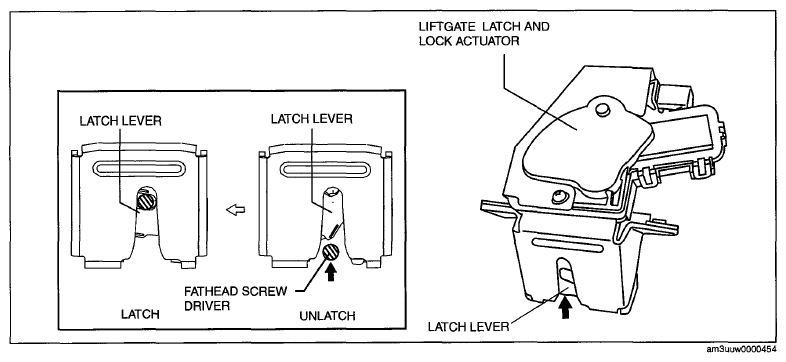

    Fig 1: Pressing Latch In Using Flathead Screwdriver
    G06731986Courtesy of MAZDA MOTORS CORP.
  4. Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.

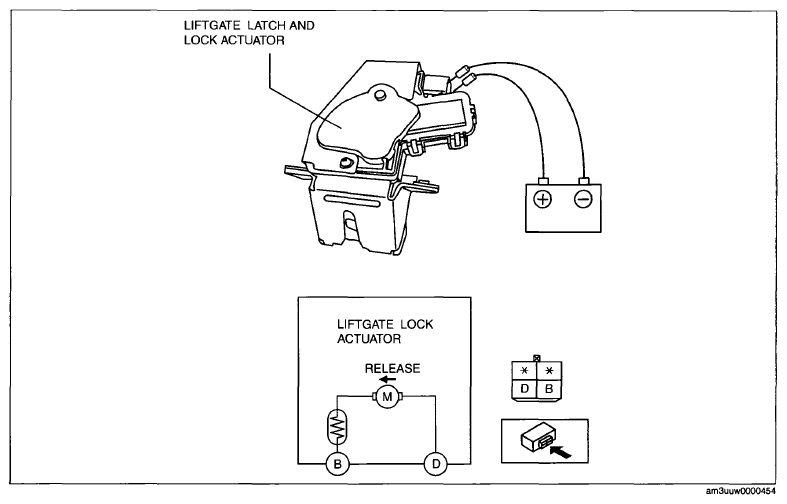

    Fig 2: Connecting Ground To Liftgate Latch And Lock Actuator Terminal
    G07875486Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the chart, replace the liftgate latch and lock actuator.
    Lock actuator operation Terminal
    B+ Ground
    RELEASE D B
