Front Stabilizer Removal/Installation [L3 With TC]: Notes

  1. Remove the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ). (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
  2. Disconnect the steering shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ). (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
  3. Remove the front auto leveling sensor. (Vehicles with AFS) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION ).
  4. Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION ).
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.
  7. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT ).

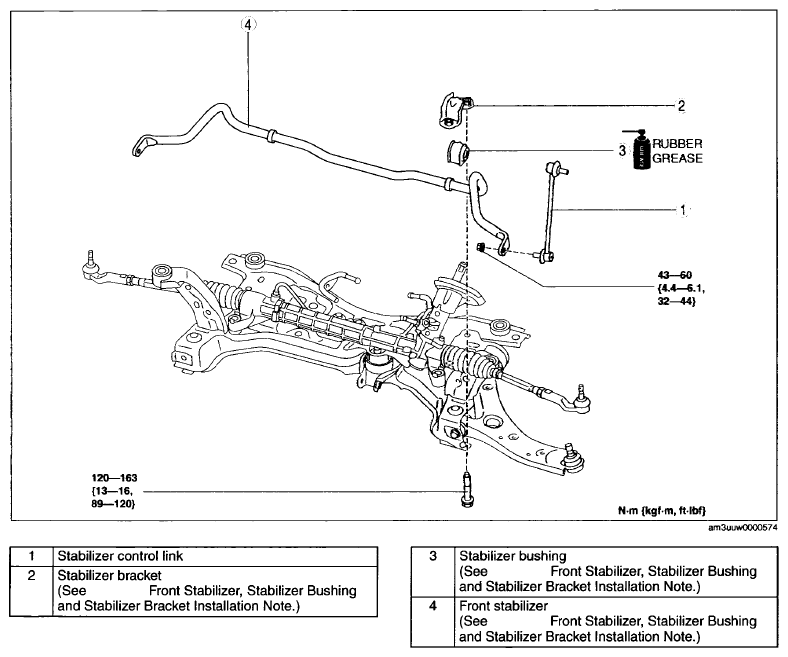

    Fig 1: Exploded View Of Front Stabilizer With Torque Specifications
    G07874036Courtesy of MAZDA MOTORS CORP.
