Front Shock Absorber And Coil Spring Removal/Installation: Notes
CAUTION:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor wiring harness connector (axle side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.
- Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION ).
- Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION ).

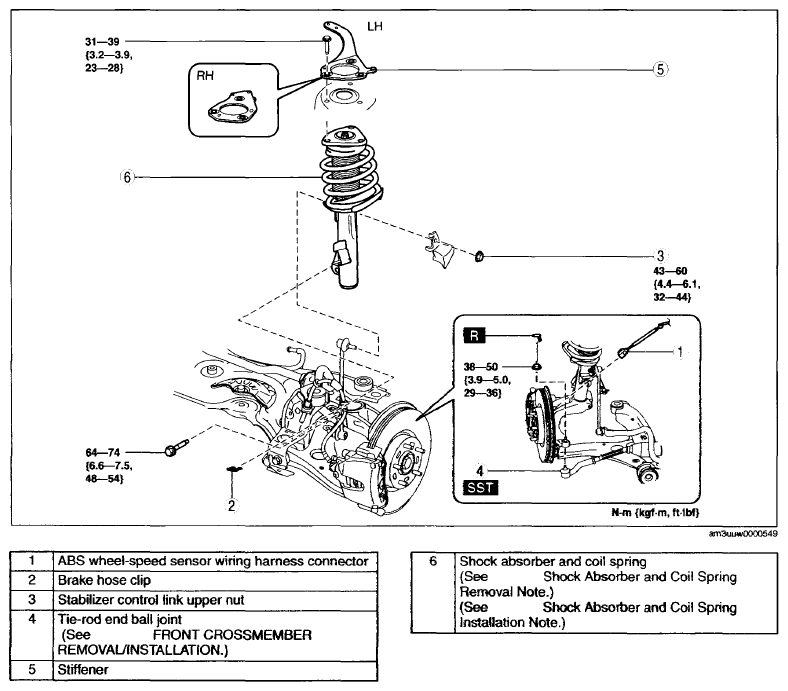

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the wheel alignment. (See FRONT WHEEL ALIGNMENT ).
