Front Lower Arm Removal/Installation: Notes

  1. Disconnect the front auto leveling sensor link lower side. (Vehicles with AFS) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT ).

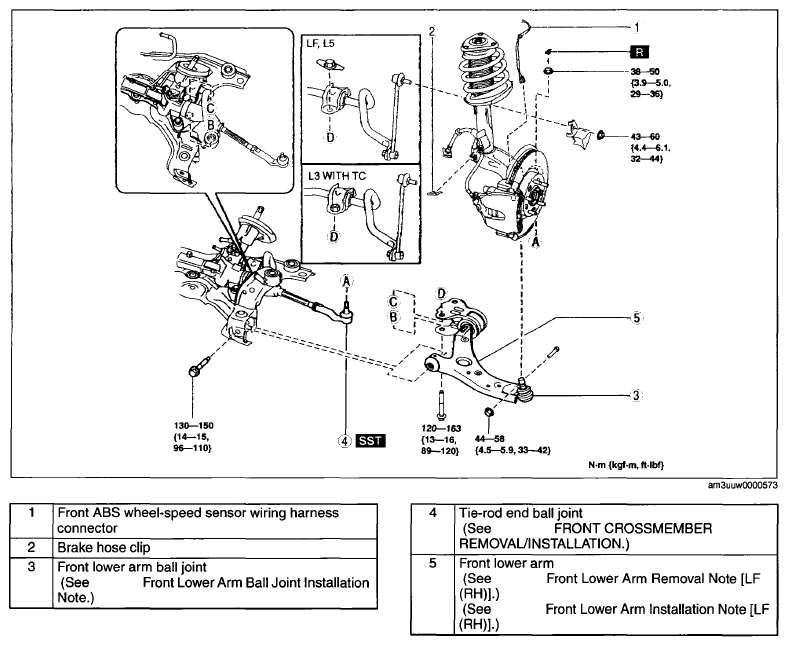

    Fig 1: Exploded View Of Front Lower Arm With Torque Specifications
    G07874032Courtesy of MAZDA MOTORS CORP.
