Front Crossmember Component Removal Note

WARNING:
  • Removing the crossmember is dangerous. The crossmember component could fall and cause serious injury or death. Verify that the jack securely supports the crossmember component.
  1. Support the front crossmember component using a jack.

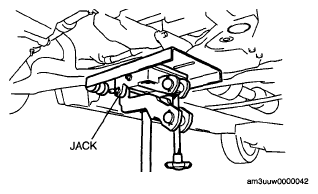

    Fig 1: Supporting Front Crossmember Component Using Jack
    G04955482Courtesy of MAZDA MOTORS CORP.
  2. Detach the rubber hangers from the front crossmember.
  3. Remove the front crossmember, front stabilizer, front lower arm, and steering gear and linkage as a single unit.

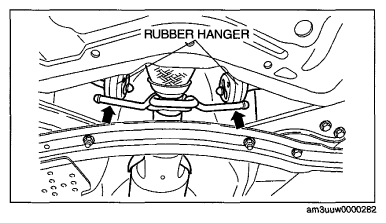

    Fig 2: Locating Rubber Hangers From Front Crossmember
    G06730984Courtesy of MAZDA MOTORS CORP.
