Rear Seat Belt Removal/Installation: 4SD

  1. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION ).
    3. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION ).
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION ).
    5. C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION ).
    6. Rear package trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION ).
  2. Remove the bolt.
  3. Remove the rear seat belt.
  4. Install in the reverse order of removal.

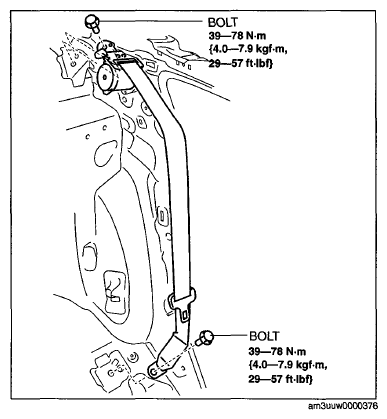

    Fig 1: Removing Rear Seat Belt Bolt With Torque Specifications
    G06731703Courtesy of MAZDA MOTORS CORP.
