Radiator Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Lift the radiator and remove it from the radiator installation holes on the shroud panel
  2. Move the radiator and condenser to the engine side.
  3. Release the left and right tabs on the lower side of the radiator by pressing them in the direction shown in the figure.

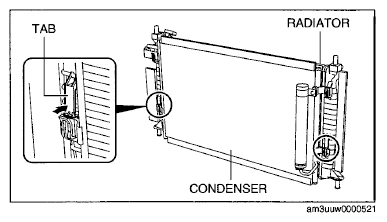

    Fig 1: Pressing Tabs On Lower Side Of Radiator
    G06732509Courtesy of MAZDA MOTORS CORP.
  4. Lift the condenser to remove it from the left and right insertion areas on the upper side of the radiator.
  5. Set the condenser apart from the radiator.
  6. Remove the radiator from below the engine compartment.

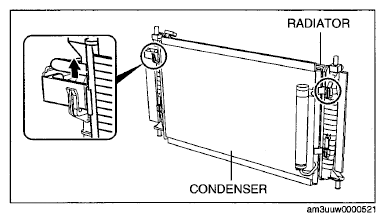

    Fig 2: Lifting Condenser
    G06732510Courtesy of MAZDA MOTORS CORP.
