NOT P Position Switch Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Perform the following procedures.
    1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5] ).
    2. Disconnect the negative battery cable.
    3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION ).
    4. Disconnect the selector lever component connector.

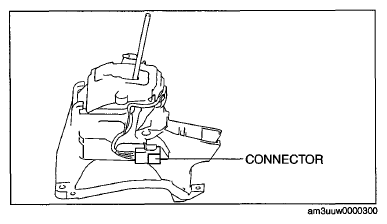

      Fig 1: Identifying Selector Lever Component Connector
      G06732789Courtesy of MAZDA MOTORS CORP.
  2. Inspect the continuity between the selector lever component terminals G and K.
    NOT P POSITION SWITCH SPECIFICATION

    Test condition Continuity
    P position No continuity
    Except P position Continuity

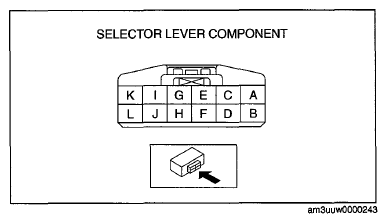

    Fig 2: Identifying Selector Lever Component Terminals
    G06732790Courtesy of MAZDA MOTORS CORP.
