Selector Lever Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5] ).
  2. Disconnect the negative battery cable.
  3. Remove in the order indicated in the figure.
  4. Install in the reverse order of removal.

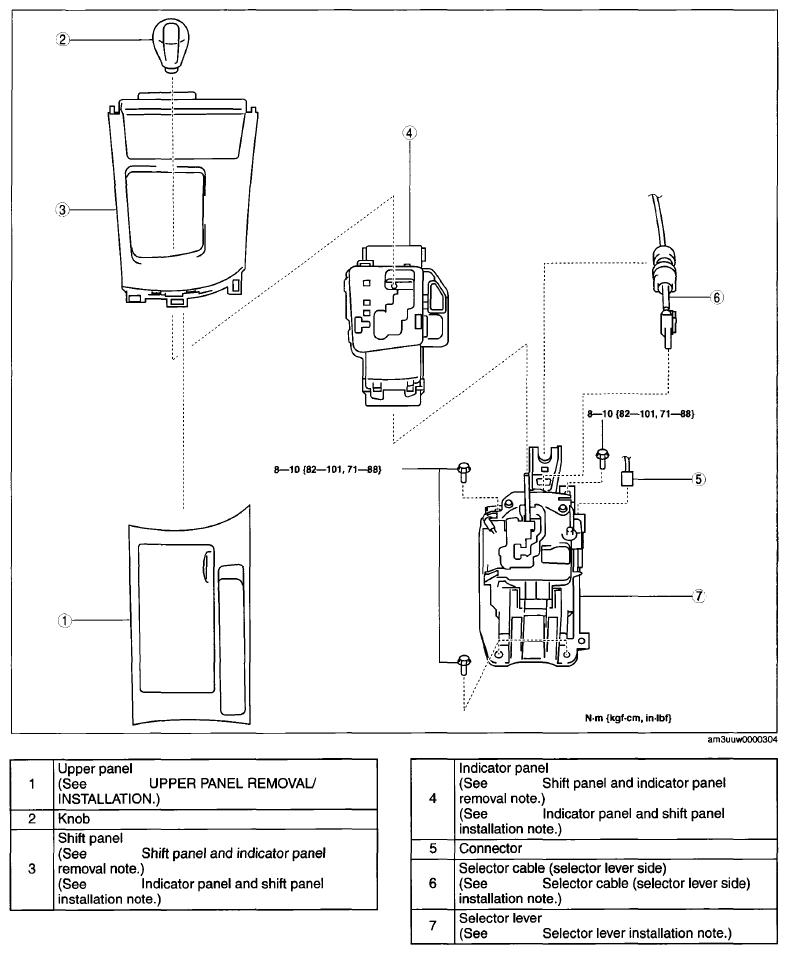

    Fig 1: Selector Lever Removal/Install With Torque Specifications
    G07874702Courtesy of MAZDA MOTORS CORP.
