Selector cable installation note

WARNING: This page is about a different variant/trim than selected.

Install the grommet as shown in the figure.
Tightening torque 4.0-9.8 N.m {41-99 kgf.cm, 36-86 in.lbf}

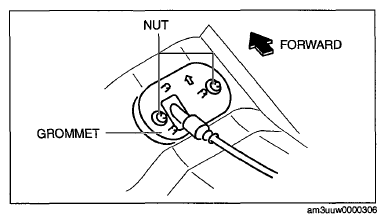

Fig 1: Identifying Selector Cable Grommet And Nut
Courtesy of MAZDA MOTORS CORP.
Install the selector cable end (selector lever side) as shown in the figure.

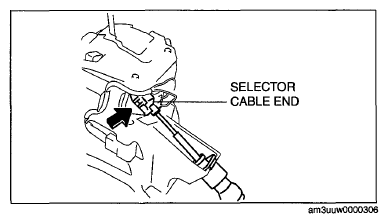

Fig 2: Locating Selector Cable End (Selector Lever Side)
Courtesy of MAZDA MOTORS CORP.
Install the cable outer end (selector lever side) to the selector cable bracket as shown in the figure.

Fig 3: Installing Cable Outer End (Selector Lever Side) To Selector Cable Bracket
Courtesy of MAZDA MOTORS CORP.
Install the clip as shown in the figure and tighten the nut.
Tightening torque 19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
Install the selector cable end (transaxle side) and the cable outer end (transaxle side).
CAUTION:
- When installing selector cable, make sure the boot is not twisted.

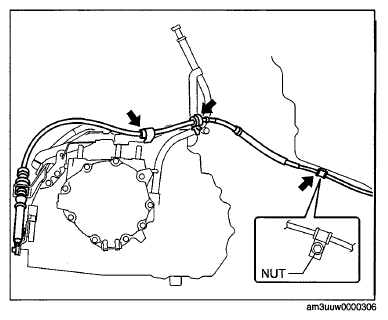

  Fig 4: Locating Selector Cable Clip
  Courtesy of MAZDA MOTORS CORP.
- Bending the selector cable in the manner shown in the figure will damage the cable and it may become loose when shifted. When installing the selector cable, hold it straight.

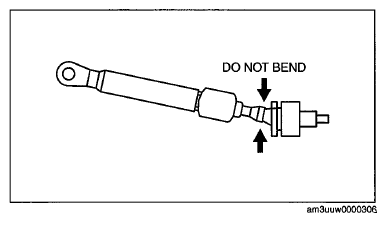

  Fig 5: Caution For Selector Cable Bending
  Courtesy of MAZDA MOTORS CORP.
1. Install the cable outer end (transaxle side) to the selector cable bracket as shown in the figure.

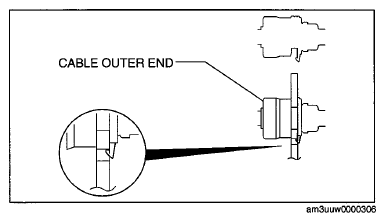

  Fig 6: Installing Cable Outer End (Transaxle Side) To Selector Cable Bracket
  Courtesy of MAZDA MOTORS CORP.
2. Install the clip to the selector cable end (transaxle side) as shown in the figure.

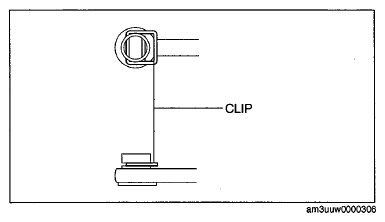

  Fig 7: Identifying Clip At Selector Cable End (Transaxle Side)
  Courtesy of MAZDA MOTORS CORP.
3. Install the selector cable end (transaxle side) to the manual shaft lever as shown in the figure.
Verify that the selector cable is securely installed.
Adjust the selector cable. (See SELECTOR CABLE ADJUSTMENT ).

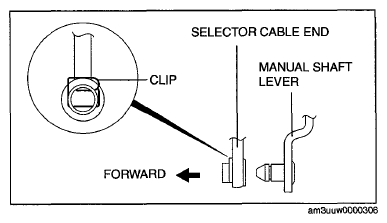

Fig 8: Installing Selector Cable End (Transaxle Side) To Manual Shaft Lever
Courtesy of MAZDA MOTORS CORP.
