Selector Cable Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5] ).
  2. Disconnect the negative battery cable.
  3. Remove the battery component (ex: battery, battery tray and PCM component). (See BATTERY REMOVAL/INSTALLATION [LF, L5] ).
  4. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L5] ).
  5. Remove the Aerodynamic undercover NO. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION ).
  6. Remove the tunnel member (rear). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF, L5] ).
  7. Remove the insulator (front) installation nuts and set the insulator (front) aside. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF, L5] ).
  8. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION ).
  9. Remove the knob. (See SELECTOR LEVER REMOVAL/INSTALLATION ).
  10. Remove the shift panel and indicator panel as a single unit.
    1. Release the hooks securing the shift panel and console, and then release the hooks securing the shift panel and ashtray panel. (See SHIFT PANEL REMOVAL/INSTALLATION ).
    2. Lift up the shift panel and indicator panel and disconnect the bulb socket from the indicator panel.

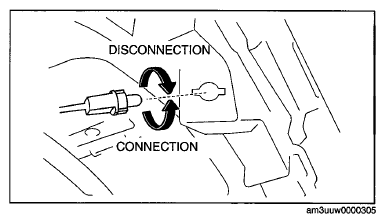

      Fig 1: Disconnecting Bulb Socket From Indicator Panel
      G06732763Courtesy of MAZDA MOTORS CORP.
    3. Remove the shift panel and indicator panel from the selector lever as a single unit.
  11. Remove the console. (See CONSOLE REMOVAL/INSTALLATION ).

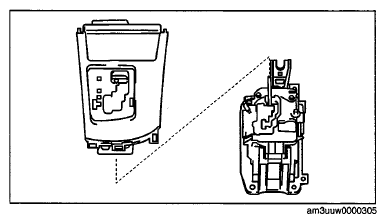

    Fig 2: Identifying Shift Panel And Indicator Panel
    G06732754Courtesy of MAZDA MOTORS CORP.
  12. Disconnect the drain hose connected to A/C unit. (See A/C UNIT REMOVAL/INSTALLATION ).
  13. Remove in the order indicated in the figure.
  14. Install in reverse of removal.

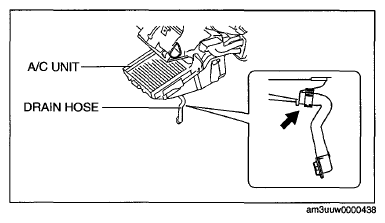

    Fig 3: Locating Drain Hose Connected To A/C Unit
    G06734286Courtesy of MAZDA MOTORS CORP.
    Fig 4: Drain Hose Removal Order With Torque Specifications
    G07874716Courtesy of MAZDA MOTORS CORP.
