Transaxle Oil Inspection
WARNING: This page is about a different variant/trim than selected.
- Park the vehicle on level ground.
- Remove the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION ).

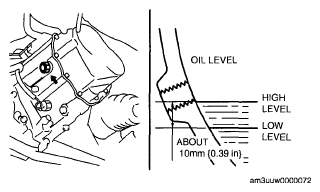

- Remove the oil level plug and washer.
- Verify that the oil is near the brim of the plug port.
- If the oil level is lower than the low level, add the specified amount and type of oil through the oil level plug hole.
Manual transaxle oil Grade API GL-4
Manual transaxle oil Viscosity SAE 75W-80
- Install a new washer and the oil level plug.
Tightening torque
39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}
- Install the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION ).
