Starter Installation Note

WARNING: This page is about a different variant/trim than selected.

NOTE:

If the insulator is peeling or damaged, attach a new insulator using the following procedure:

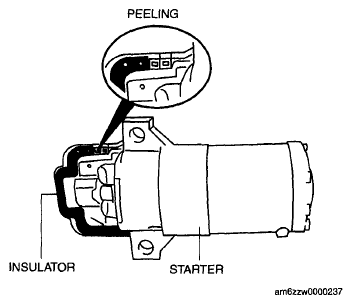

Peel off the insulator from the starter completely using a scraper.

Fig 1: Peeling Insulator From Starter Using Scraper
Courtesy of MAZDA MOTORS CORP.

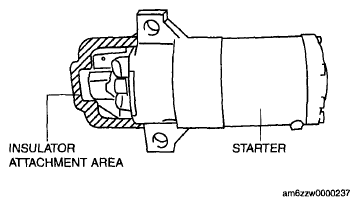

Degrease the insulator attachment area.

Fig 2: Identifying Starter And Insulator Attachment Area
Courtesy of MAZDA MOTORS CORP.

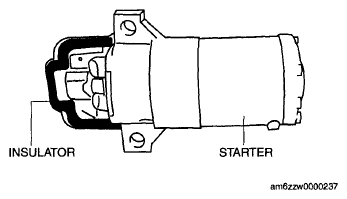

Attach a new insulator to the starter.

Fig 3: Identifying Insulator And Starter
Courtesy of MAZDA MOTORS CORP.
