Starter Disassembly/Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

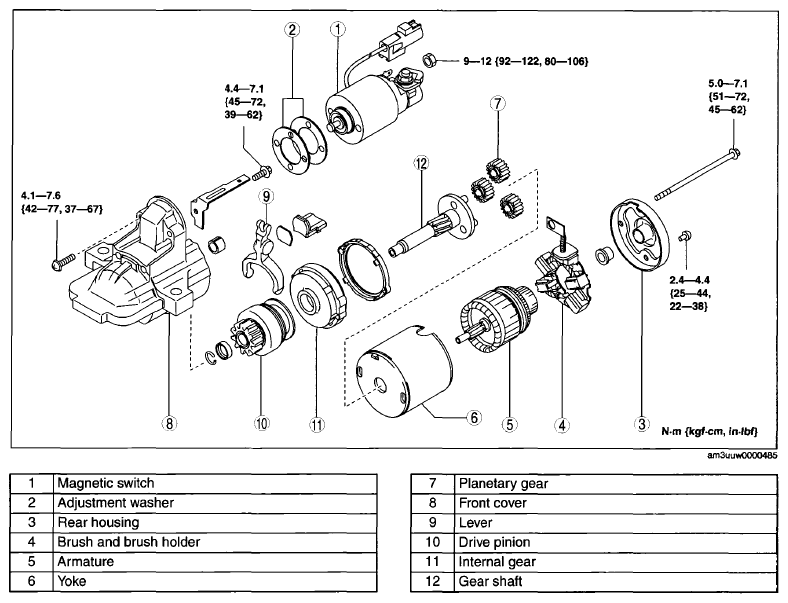

    Fig 1: Exploded View Of Starter With Torque Specifications
    G07868427Courtesy of MAZDA MOTORS CORP.
