Manual Transaxle Removal Note

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • Remove the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.
  1. Adjust the SST  and lean the engine toward the transaxle.

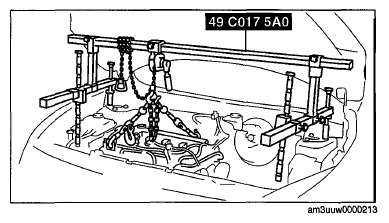

    Fig 1: Adjusting SST And Lean Engine Toward Transaxle
    G06733296Courtesy of MAZDA MOTORS CORP.
  2. Support the transaxle on a jack.
  3. Remove the transaxle mounting bolts.
  4. Remove the transaxle.

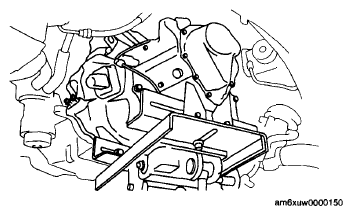

    Fig 2: Supporting Transaxle Using Jack
    G06205824Courtesy of MAZDA MOTORS CORP.
