Ignition Coil Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
  2. Disconnect the negative battery cable.
  3. Remove the charge air cooler. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

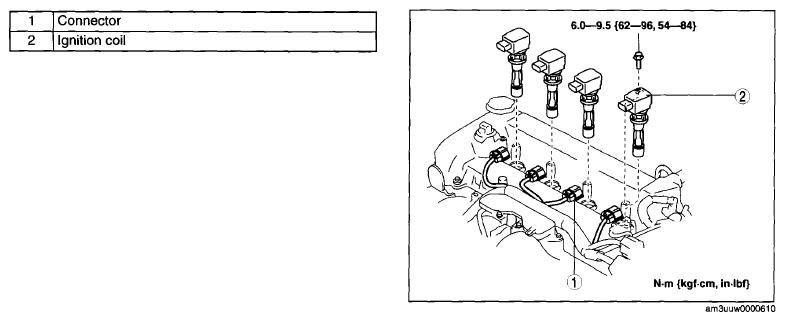

Fig 1: Ignition Coil, Connector And Bolt With Torque Specifications
G07868374Courtesy of MAZDA MOTORS CORP.
