Resistance Inspection
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
- Remove the fuel delivery pipe. (See FUEL INJECTOR REMOVAL/INSTALLATION ).
- Disconnect the fuel injector connectors.

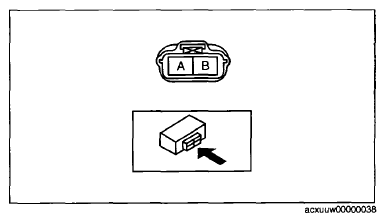

- Measure the resistance of the fuel injector.
Fuel injector resistance
1.0-1.2 ohms [20°C {68°F}]
- If not as specified, replace the fuel injector. (See FUEL INJECTOR REMOVAL/INSTALLATION ).
