WU-TWC Installation Note

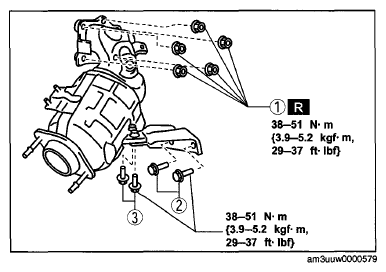

- Temporarily tighten No. 1 shown in the figure.
- Temporarily tighten No. 2 shown in the figure.
- Temporarily tighten No. 3 shown in the figure.
- Completely tighten No. 1 shown in the figure.
Tightening torque
38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
- Completely tighten No. 2 shown in the figure.
Tightening torque
38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
- Completely tighten No. 3 shown in the figure.
Tightening torque
38-51 N.m {3.9-5.2 kgf.m, 29-37 ft-lbf}
