Exhaust System Removal/Installation: Notes

WARNING:
  • A hot engine and exhaust system can cause severe bums. Turn off the engine and wait until they are cool before removing the exhaust system.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
  3. Remove in the order indicated in the table.
  4. Remove the exhaust system insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION NOTE ).
  5. Install in the reverse order of removal.

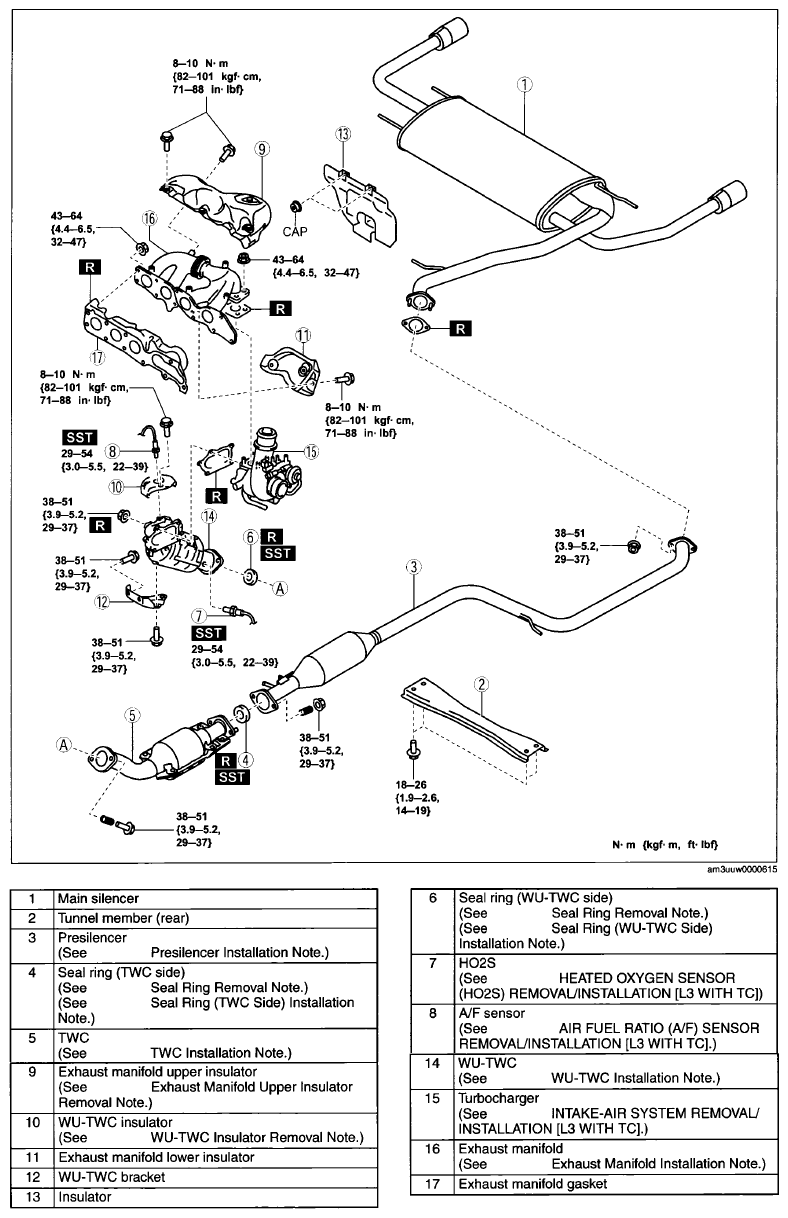

    Fig 1: Exploded View Of Exhaust System With Torque Specifications
    G07868200Courtesy of MAZDA MOTORS CORP.
