Exhaust System Insulator Removal/installation Note: Notes

  1. Remove the exhaust system insulator in the order shown in the figure.
  2. Install in the reverse order of removal.

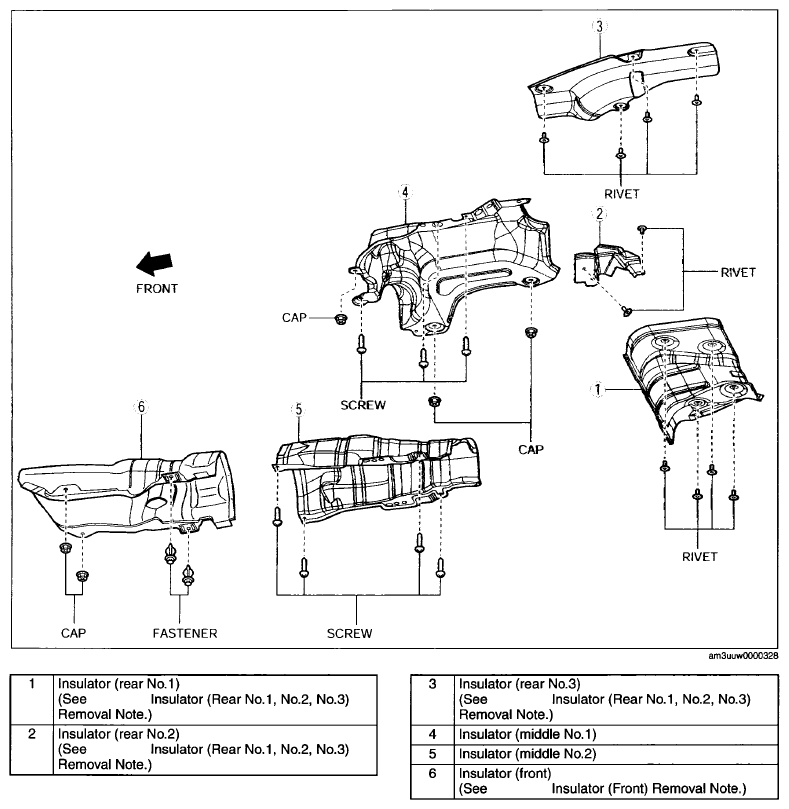

    Fig 1: Exploded View Of Exhaust System Insulator
    G07868201Courtesy of MAZDA MOTORS CORP.
