Engine Oil Level Inspection

  1. Position the vehicle on level ground.
  2. Warm up the engine.
  3. Stop the engine and allow at least 5 min  before continuing.
  4. Remove the dipstick, wipe it cleanly, and reinstall it fully.
  5. Remove the dipstick and verify that the oil level is between the MIN and MAX marks on the dipstick.
    • If the oil level is below the MIN mark, add engine oil.

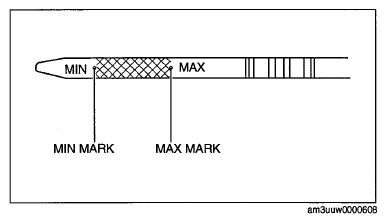

      Fig 1: Identifying Oil Level Marks On Dipstick
      G06732915Courtesy of MAZDA MOTORS CORP.
