Generator Disassembly/Assembly [LF, L5]: LF

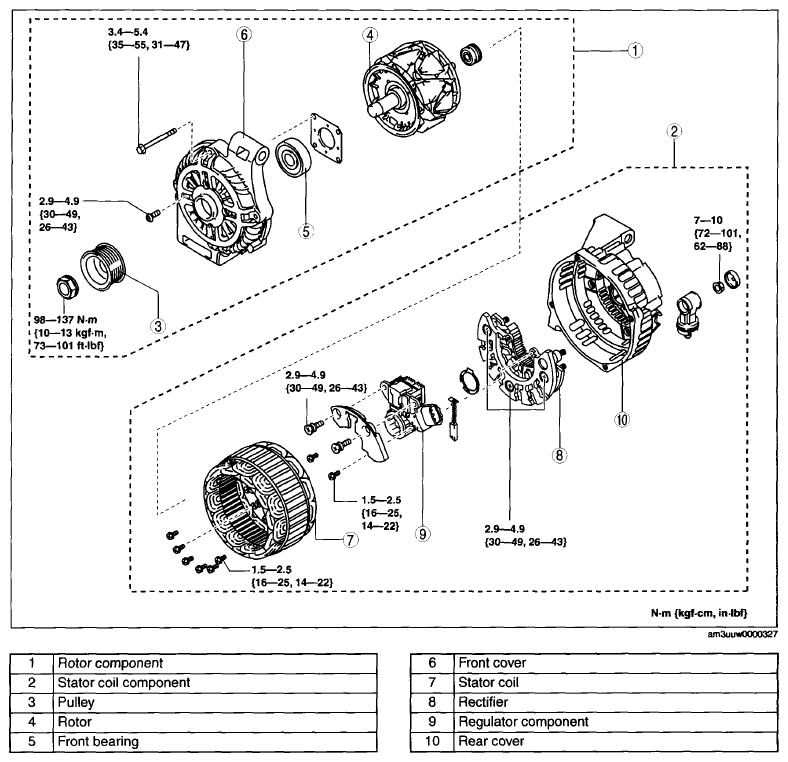

Fig 1: Exploded View Of Generator With Torque Specifications (LF)

G07868371

Courtesy of MAZDA MOTORS CORP.
