Generator Disassembly/Assembly [LF, L5]: L5

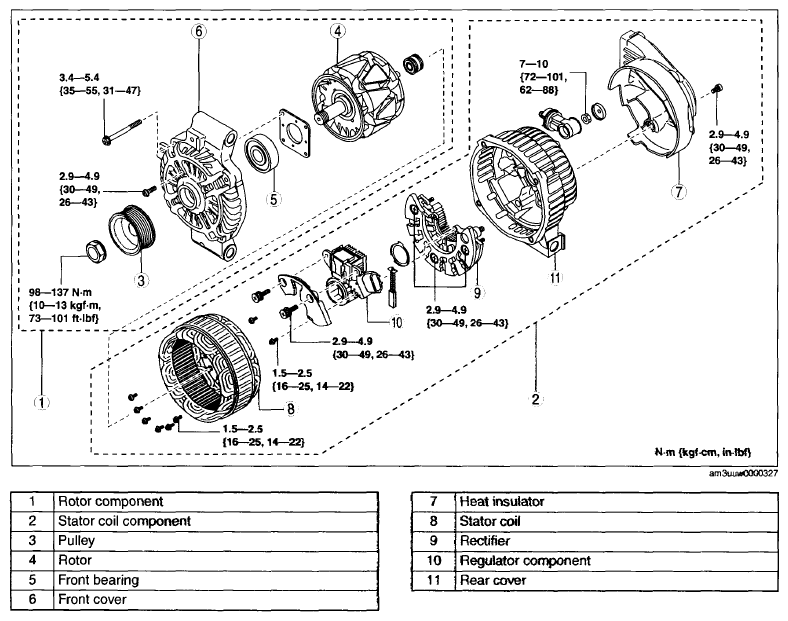

Fig 1: Exploded View Of Generator With Torque Specifications (L5)

G07868372

Courtesy of MAZDA MOTORS CORP.
