Battery Removal/Installation [LF, L5]: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

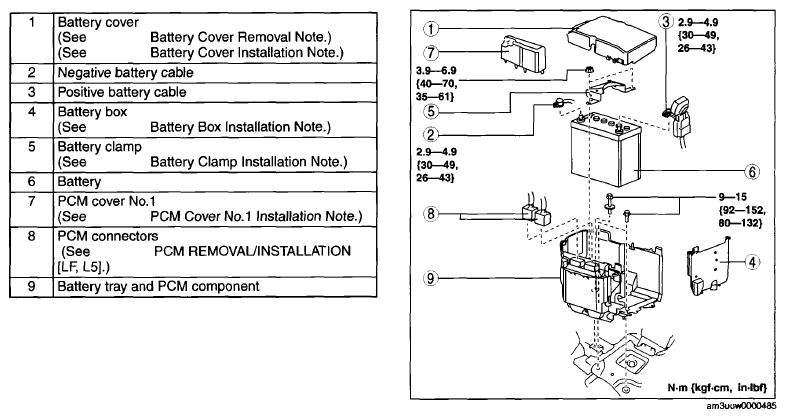

    Fig 1: Battery Replacement Components With Torque Specifications
    G07868343Courtesy of MAZDA MOTORS CORP.
