Stator coil: Notes

Verify that the continuity is as indicated in the table.

Fig 1: Stator Coil Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Stator Coil
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the stator.
Verify that there is no continuity between the stator coil leads and core using a tester.
- If there is continuity, replace the stator coil.

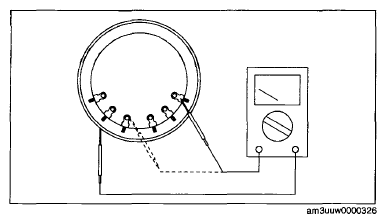

  Fig 3: Checking Continuity Between Stator Coil Leads And Core Using Tester
  Courtesy of MAZDA MOTORS CORP.
