Battery Cover Installation Note

  1. Install with battery cover hooks C aligned with the battery tray holes at two points.

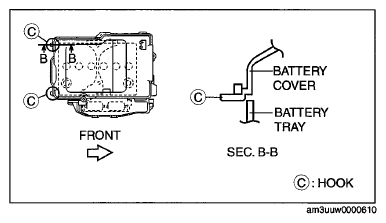

    Fig 1: Identifying Battery Cover Hooks C With Battery Tray Holes
    G06732980Courtesy of MAZDA MOTORS CORP.
  2. Set the battery cover to battery tray clips D at two points.

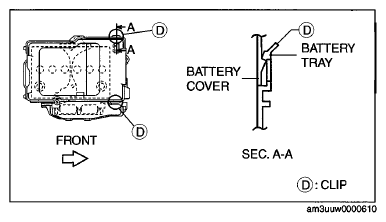

    Fig 2: Identifying Battery Cover To Battery Tray Clips D
    G06732981Courtesy of MAZDA MOTORS CORP.
