Relay Location

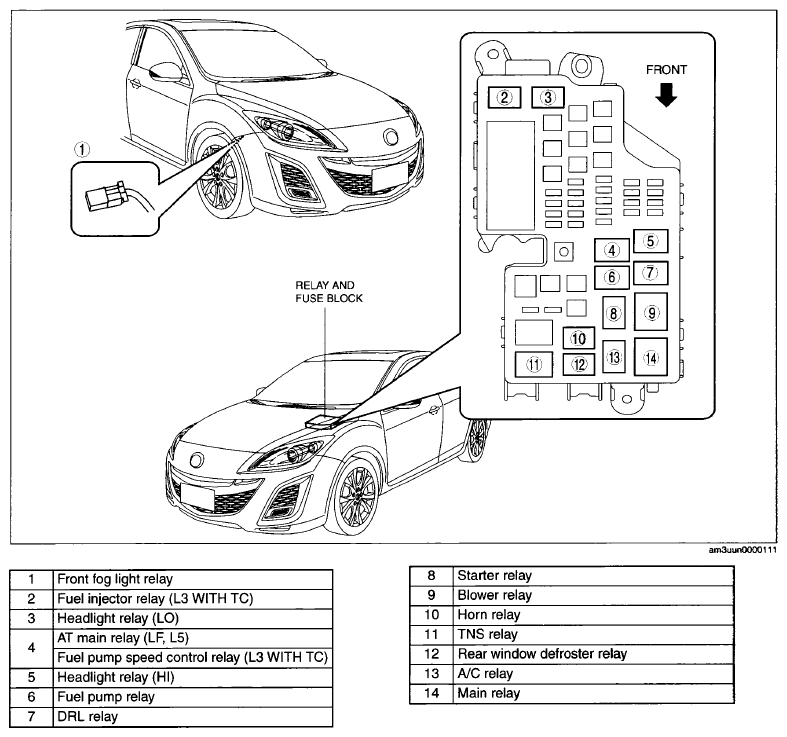

Fig 1: Identifying Relay And Fuse Block

Courtesy of MAZDA MOTORS CORP.

ENGINE ROOM RELAY BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Fog Light Relay
Fuel Injector Relay
Headlight Relay (Lo)
AT Main Relay
Fuel Pump Speed Control Relay
Headlight Relay (Hi)
Fuel Pump Relay
DRL Relay
Starter Relay
Blower Relay
Horn Relay
TNS Relay
Rear Window Defroster Relay
A/C Relay
Main Relay
