Power System Location Index [Without Advanced Keyless Entry And Push Button Start System]

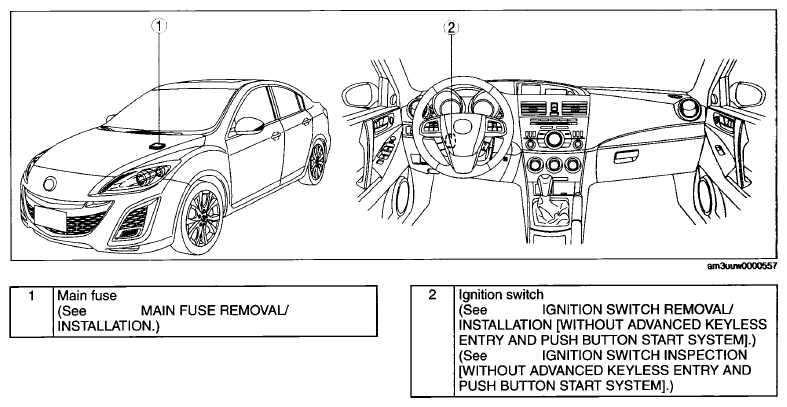

Fig 1: Identifying Main Fuse And Ignition Switch

G07876082

Courtesy of MAZDA MOTORS CORP.
