Key Reminder Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION ).
  3. Disconnect the key reminder switch connector.
    Fig 1: Disconnecting Key Reminder Switch Connector
    G06733182Courtesy of MAZDA MOTORS CORP.
  4. Detach the key reminder switch tabs.
  5. Remove the key reminder switch.
  6. Install in the reverse order of removal.

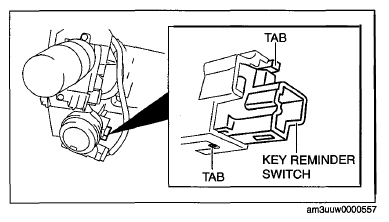

    Fig 2: Removing Key Reminder Switch 3
    G06733186Courtesy of MAZDA MOTORS CORP.
