Rear Abs Wheel-Speed Sensor Removal/Installation: Notes

  1. Remove the under cover. (See REAR TRAILING LINK REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

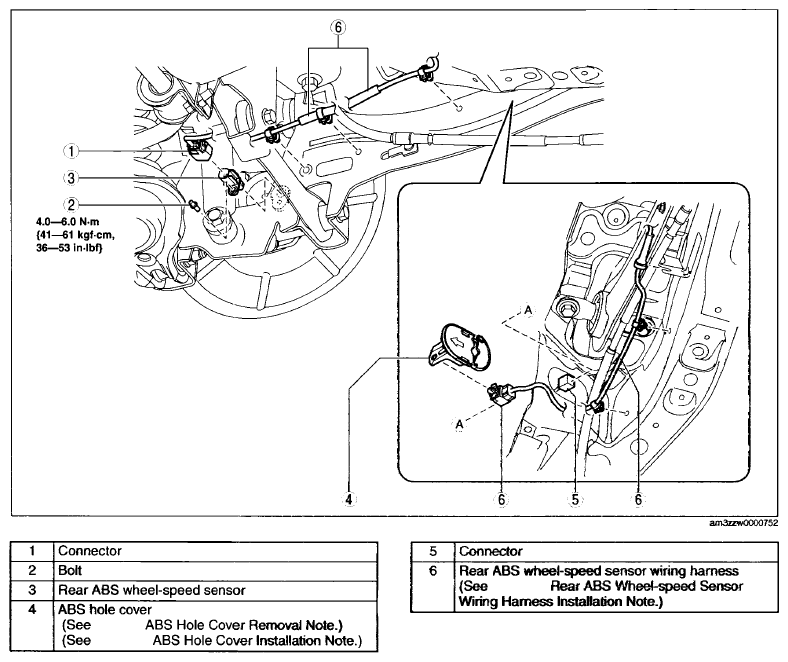

    Fig 1: Rear ABS Wheel-Speed Sensor Replacement Components With Torque Specifications
    G07874344Courtesy of MAZDA MOTORS CORP.
