Home >> Mazda >> 2011 >> 3 Mazdaspeed, 2.3 4 >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Abs Location Index

Abs Location Index

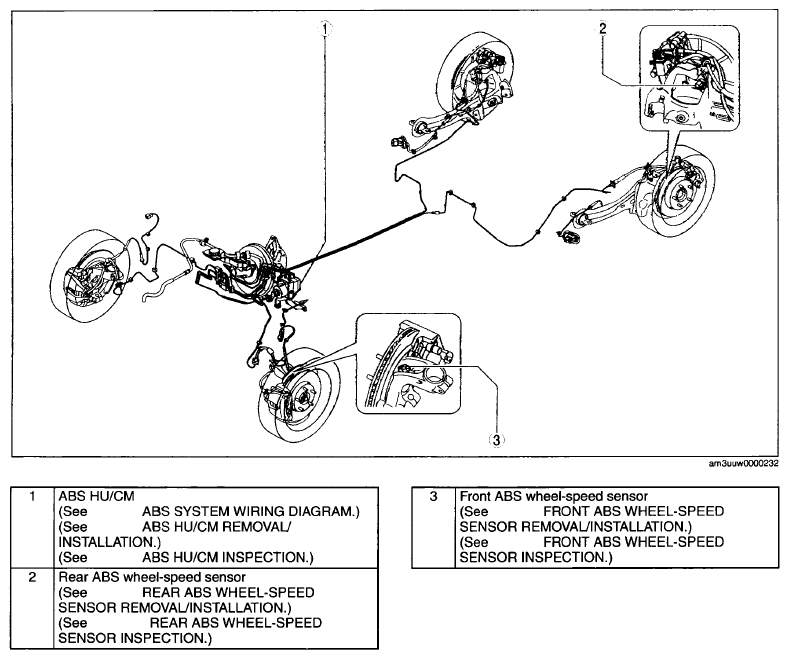

Fig 1: Identifying ABS Parts Location
G07874331Courtesy of MAZDA MOTORS CORP.
