Quarter Window Glass Installation

WARNING:

Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

CAUTION:

If a door is opened or closed when all the window glass is closed, the resulting change in air pressure could cause the sealant to crack preventing the proper installation of the glass. Keep the door glass open until the quarter window glass installation is completed.

Remove sealant along the perimeter of the glass using a razor or scraper, (when reusing the glass)
Clean and degrease the ceramic part along the perimeter of the glass.
Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.
If the glass is reused, attach the pins to the glass as shown in the figure.

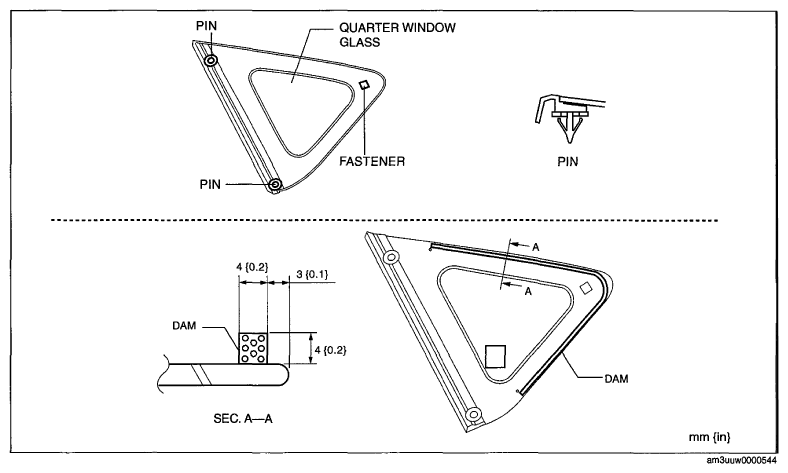

Fig 1: Identifying Quarter Window Glass, Fastener And Pins
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Align with the alignment marks marked before removing the glass.
Apply glass primer along the hollowed marks in the ceramic coating on the new glass, along the sealant tracks on the reused glass, then allow it to dry for approx. 30 min .
CAUTION:
- To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
NOTE:
- Apply primer to the hollowed marks in the ceramic coating.

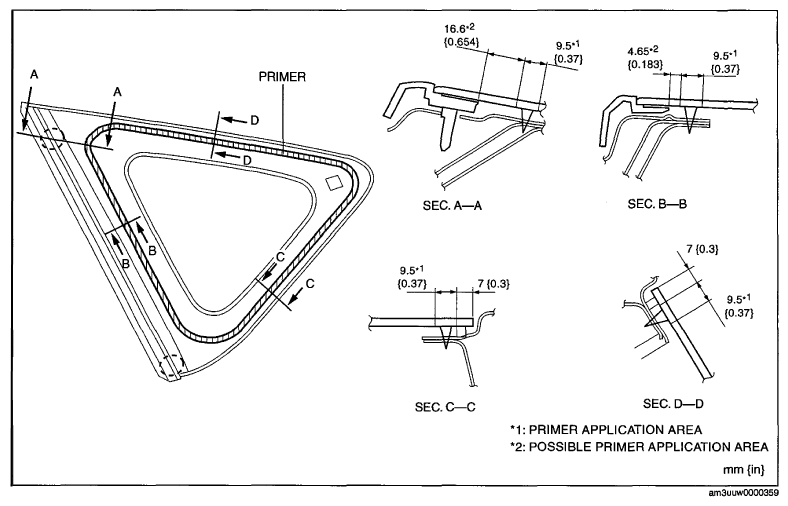

  Fig 2: Identifying Primer Applying Area To Hollowed Marks In Ceramic Coating
  Courtesy of MAZDA MOTORS CORP.
Cut away the old sealant using a razor or scraper so that 1-2 mm {0.04-0.079 in} thickness of sealant remains along the perimeter of the frame.
if the sealant has come off completely in any one place, apply some primer after degreasing, and allow it approx. 30 min to dry. Then apply 2 mm {0.079 in} thickness of new sealant.
Clean and degrease the bonding surface along the perimeter of the body.
Apply body primer on the body as shown in the figure, then allow it to dry for approx. 30 min .
CAUTION:
- To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

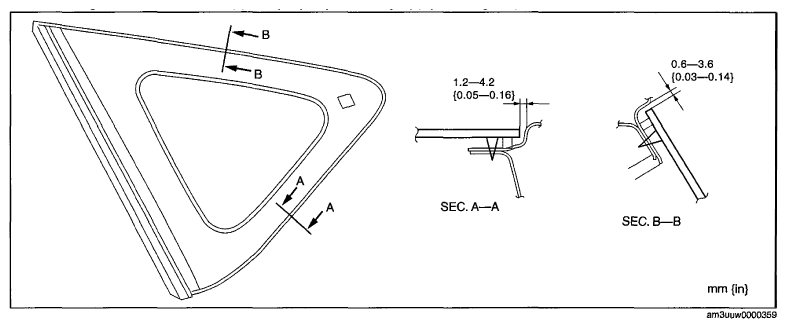

  Fig 3: Identifying Body Primer Applying Area On Body
  Courtesy of MAZDA MOTORS CORP.
Install the fastener to the bead on the body side.
After the primer has dried, apply 11 mm {0.43 in} in thickness, 5 mm {0.20 in} in width of sealant using a sealant gun. Where it is not applied properly, correctly apply it using a spatula.

Fig 4: Identifying Fastener On Body Side
Courtesy of MAZDA MOTORS CORP.

Fig 5: Identifying Quarter Window Glass Sealant Width
Courtesy of MAZDA MOTORS CORP.
Insert the positioning pins to the body and install the quarter window glass.
Install the following parts:
1. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION ).
2. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION ).
3. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION ).
4. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
5. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION ).
Allow the sealant to harden completely.
Sealant hardening time: 24 h
