Power Outer Mirror Switch Inspection

Disconnect the negative battery cable.
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION ).
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
3. Switch panel (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY ).
Verify that the continuity between the power outer mirror switch terminals is as indicated in the table.
- If not as indicated in the table, replace the power outer mirror switch.

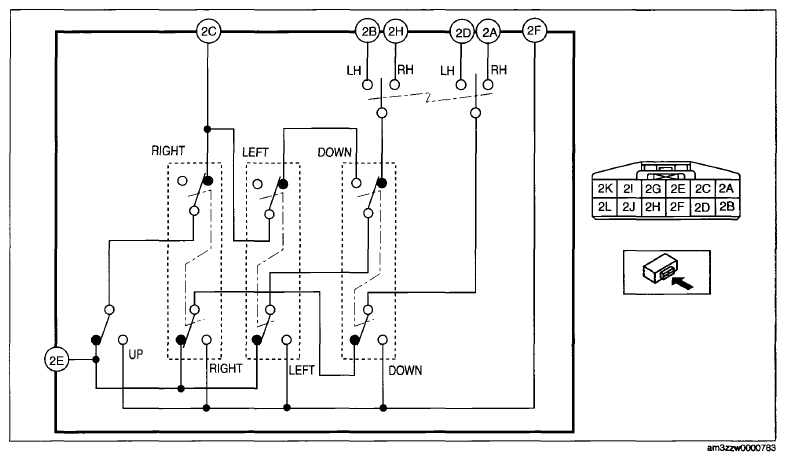

  Fig 1: Checking Continuity Between Power Outer Mirror Switch Terminals
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Power Outer Mirror Switch Terminals Continuity Chart
  Courtesy of MAZDA MOTORS CORP.
