Power Outer Mirror Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
  4. Disconnect the power outer mirror connector.

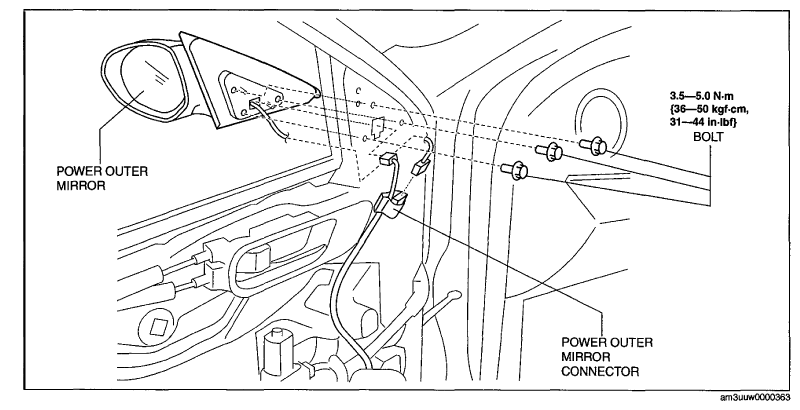

    Fig 1: Power Outer Mirror Connector And Bolts With Torque Specifications
    G06731846Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts.
  6. Remove the power outer mirror.
  7. Install in the reverse order of removal.
