Front Power Window Regulator Removal/Installation

To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in} .
Disconnect the negative battery cable.
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION ).
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION ).
4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION ).
5. Front power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION ).

  Fig 1: Identifying Front Door Glass Distance
  Courtesy of MAZDA MOTORS CORP.
Remove the nuts.

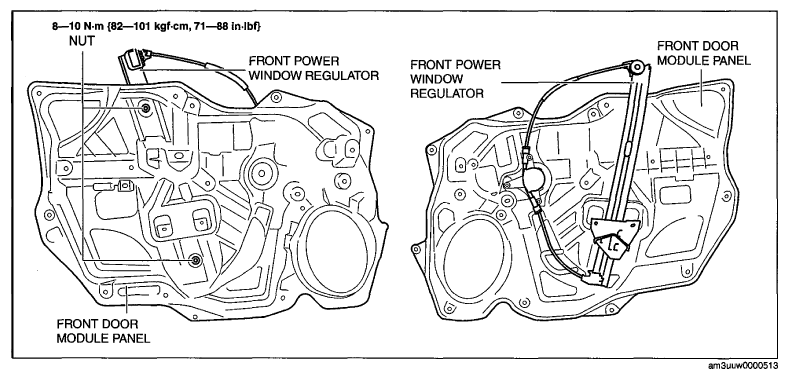

Fig 2: Front Power Window Regulator, Front Door Module Panel And Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
CAUTION:
- When installing, do not allow the cable to come out from the drum housing.
