Auto-Dimming Mirror Removal

Remove the rain sensor cover. (See RAIN SENSOR REMOVAL/INSTALLATION ).
Remove the rain sensor. (See RAIN SENSOR REMOVAL/INSTALLATION ).
Disconnect the auto-dimming mirror connector.

Fig 1: Identifying Auto-Dimming Mirror And Auto-Dimming Mirror Connector
Courtesy of MAZDA MOTORS CORP.
Make a tool as shown in the figure using wire.
CAUTION:
- Using the tool with bare hands can cause injury. Always wear gloves when using the tool.
- To prevent damage to the lens, do not use a Flathead screwdriver.

  Fig 2: Identifying Auto-Dimming Mirror Tool Specifications
  Courtesy of MAZDA MOTORS CORP.
Insert the tool to the position shown in the figure and press the center part of the spring.
CAUTION:
- Perform the procedure while being careful not to damage the lens.

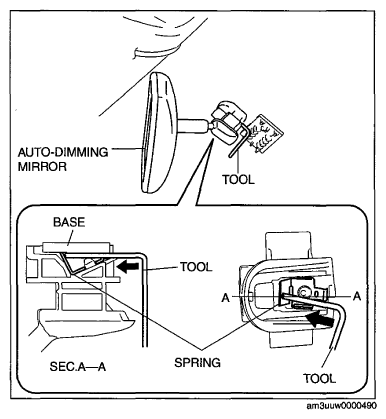

  Fig 3: Pressing Center Part Of Spring
  Courtesy of MAZDA MOTORS CORP.
Pull out the rearview mirror toward the vehicle rear.
CAUTION:
- When removing the rearview mirror, it may hit the headliner and cause a damage. Hold the rearview mirror with hands and be careful not to contact it with the headliner.

  Fig 4: Pulling Out Rearview Mirror Toward Vehicle Rear
  Courtesy of MAZDA MOTORS CORP.
