Vehicle With Power Seat Control Module

  1. Disconnect the power seat switch connector.
  2. Inspect for continuity between the power seat switch connector terminals using an ohmmeter.
    • If not as specified, replace the power seat switch.

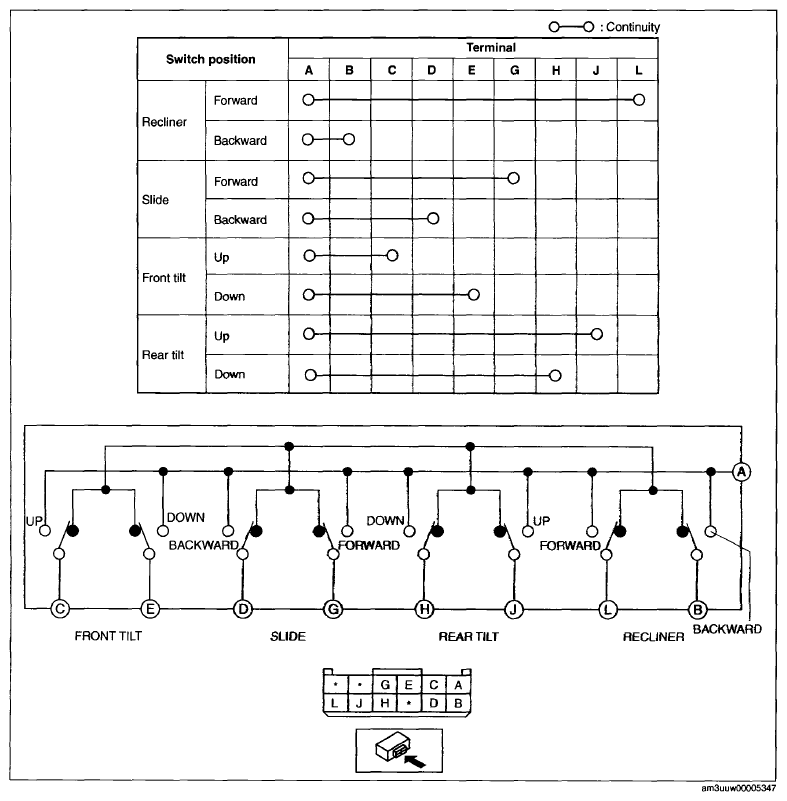

      Fig 1: Power Seat Switch Connector Terminals Continuity Chart (Vehicle With Power Seat Control Module)
      G07875353Courtesy of MAZDA MOTORS CORP.
