Front Seat Back Trim Removal/Installation: Installation

Install the seat back trim to the front seat back pad, install the rings C in the order of (1), (2), (3) shown in the figure, then install the seat back trim.

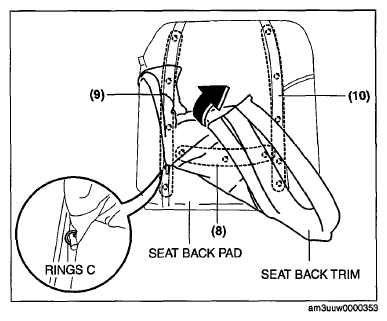

Fig 1: Installing Seat Back Trim To Front Seat Back Pad And Rings C
Courtesy of MAZDA MOTORS CORP.
Install the seat back trim and the seat back pad as a single unit from the seat frame by pushing them in the direction of the arrow
Pass holder bracket A through slit A, holder hook B through slit B of the seat back pad.

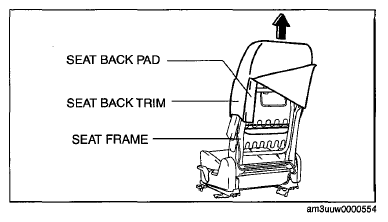

Fig 2: Installing Seat Back Trim And Seat Back Pad Single Unit From Seat Frame
Courtesy of MAZDA MOTORS CORP.

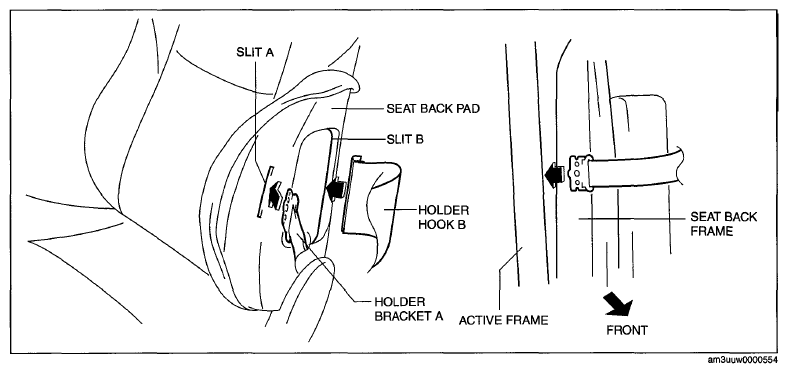

Fig 3: Passing Holder Bracket Through Slit A And B Of Seat Back Pad
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Install it without twisting the sleeve.
- Get the holder bracket through between active frame and seat back frame.
Push the part A shown in the figure to the rear.
Assemble the holder bracket A to the seat back frame and install the nut shown in the figure.

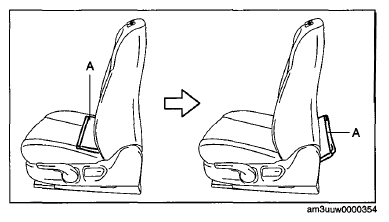

Fig 4: Pushing Rear Seat Part A
Courtesy of MAZDA MOTORS CORP.

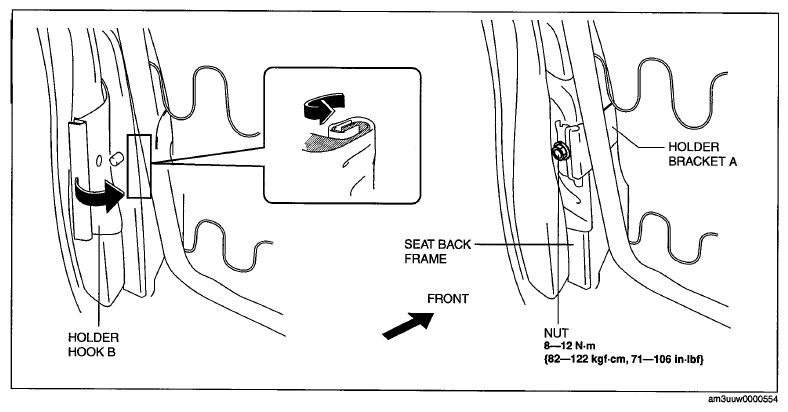

Fig 5: Assembling Holder Bracket To Seat Back Frame And Nut With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install the pole guide in the direction of arrow shown in the figure.
shut the fastener.

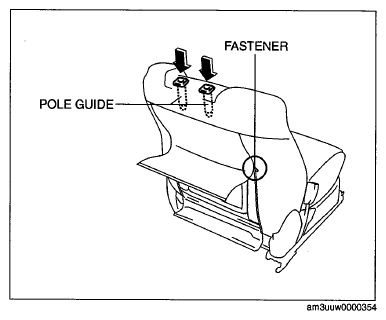

Fig 6: Installing Pole Guide And Fastener
Courtesy of MAZDA MOTORS CORP.
Slide hook A in the order of (4), (5), (6) shown in the figure to install it to hook B

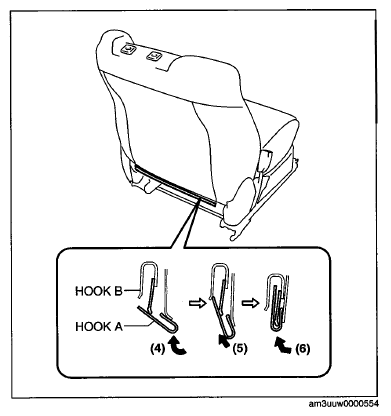

Fig 7: Sliding Hook A
Courtesy of MAZDA MOTORS CORP.
Install the band, while tighten the wiring harness.

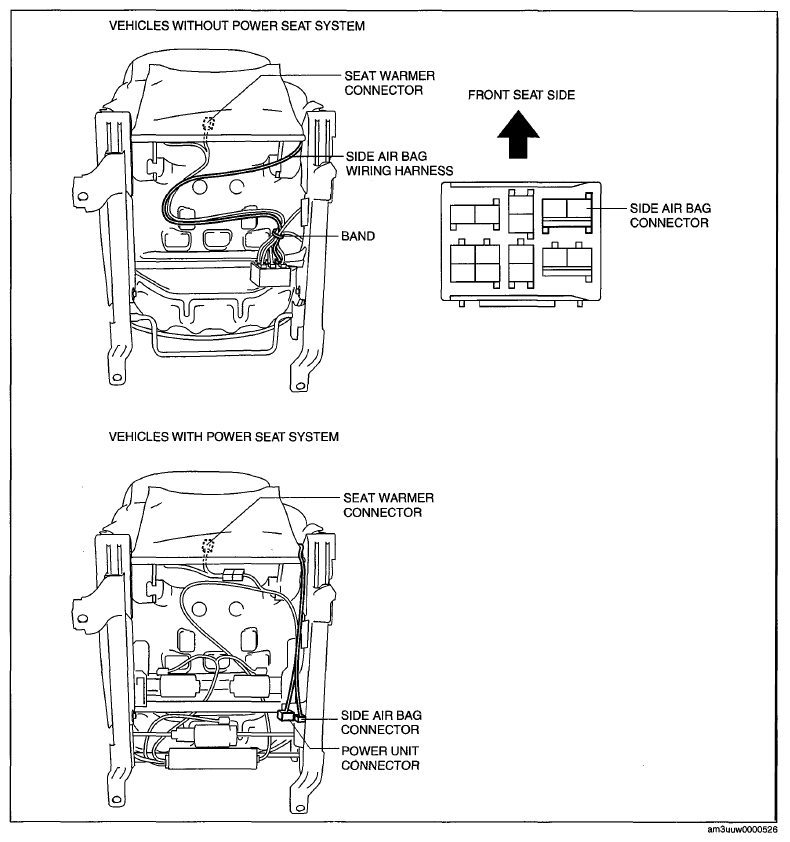

Fig 8: Identifying Side Air Bag Connector, Seat Warmer Connector, Band And Wiring Harness
Courtesy of MAZDA MOTORS CORP.
