Active Headrest Inspection

  1. Push the bottom of front seat back in the direction of arrow shown in the figure.

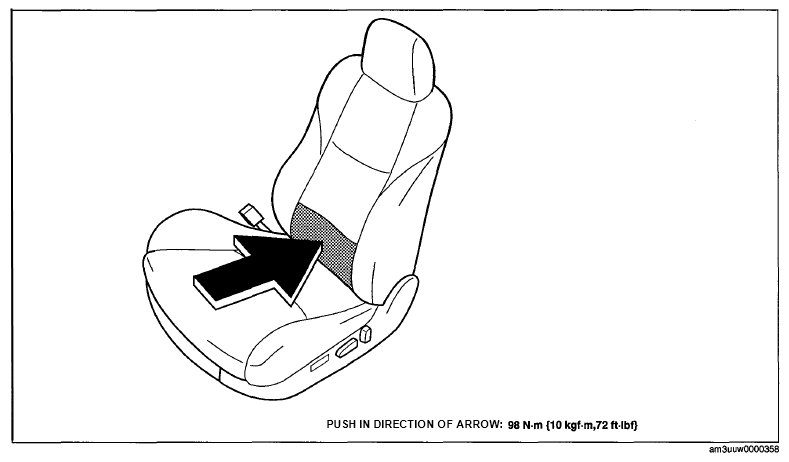

    Fig 1: Pushing Bottom Of Front Seat Back With Torque Specifications
    G06732595Courtesy of MAZDA MOTORS CORP.
  2. While inspecting for move the front seat back.
