Front Power Window Motor

  1. Fully lower the front door glass.
  2. Disconnect the negative battery cable.
  3. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  4. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
  5. Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION ).
  6. Remove the bolts.

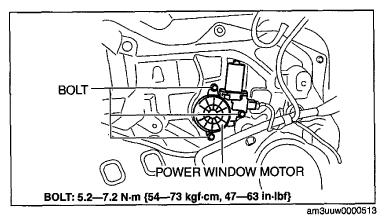

    Fig 1: Power Window Motor Bolts With Torque Specifications
    G06731783Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the front power window motor connector.
  8. Install in the reverse order of removal.
    NOTE:
    • When installing the front power window motor to the front power window regulator drum, the drum housing hooks may detach from the door module. If this happens, remove the front door speaker, insert your hand in the speaker installation hole, connect the drum housing hooks, and while supporting the drum housing, install the front power window motor to the drum.

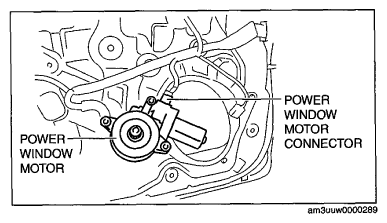

      Fig 2: Identifying Front Power Window Motor Connector
      G06731784Courtesy of MAZDA MOTORS CORP.
