Side Panel Removal/Installation

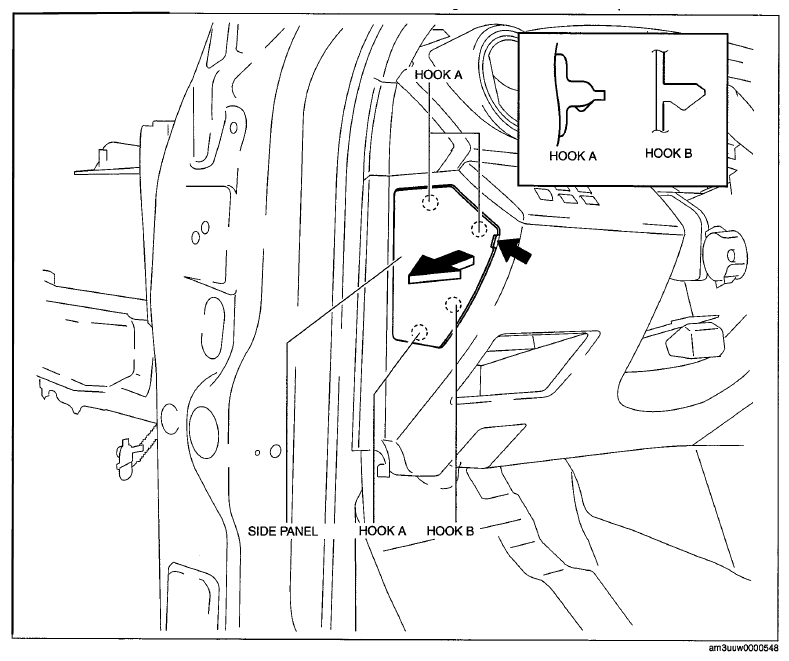

- Insert a tape-wrapped fastener remover into the position indicated by the arrow in the figure.
- Pull the side panel in the direction of the arrow shown in the figure, then remove the clips and hook.
Courtesy of MAZDA MOTORS CORP.

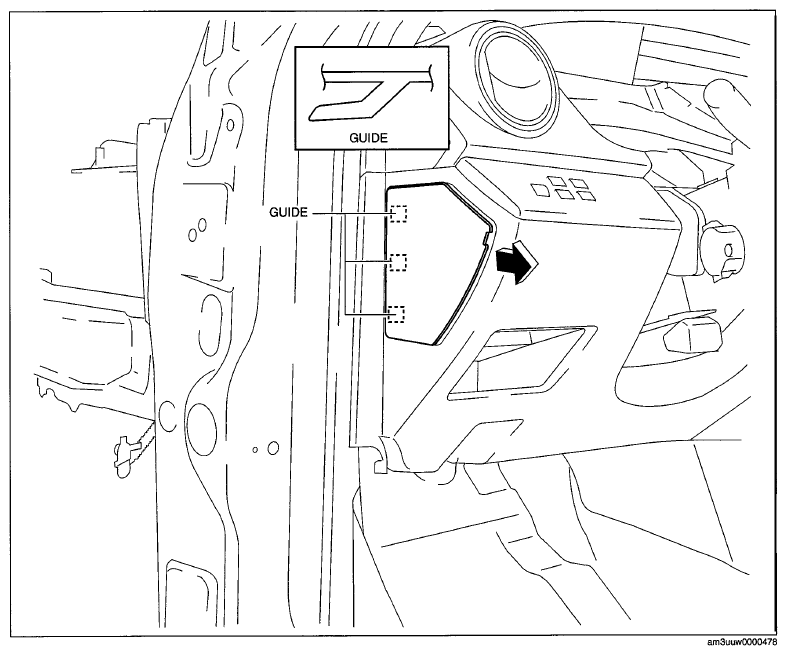

- Pull the side panel in the direction of the arrow shown in the figure, while detaching the guides.
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When pulling out the side panel, be careful not to damage the guide.
- Install in the reverse order of removal.
