Trunk Lid Opener Lever Removal/Installation

  1. Remove the front scuff plate (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
  2. Remove the front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
  3. Remove the fuel-filler lid opener bezel. (See FUEL-FILLER LID OPENER BEZEL REMOVAL/INSTALLATION ).
  4. Partially peel back the floor covering.

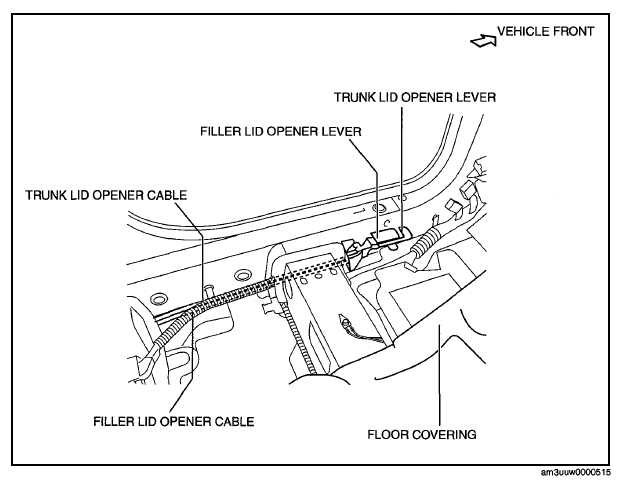

    Fig 1: Identifying Trunk Lid Opener Lever, Cable And Floor Covering
    G06731974Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts.
    Fig 2: Identifying Trunk Lid Opener Lever, Cable, Floor Covering And Bolts
    G06731974Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the cable and trunk lid opener lever.
  7. Install in the reverse order of removal.
