Advanced Keyless Entry And Push Button Start System/Immobilizer System

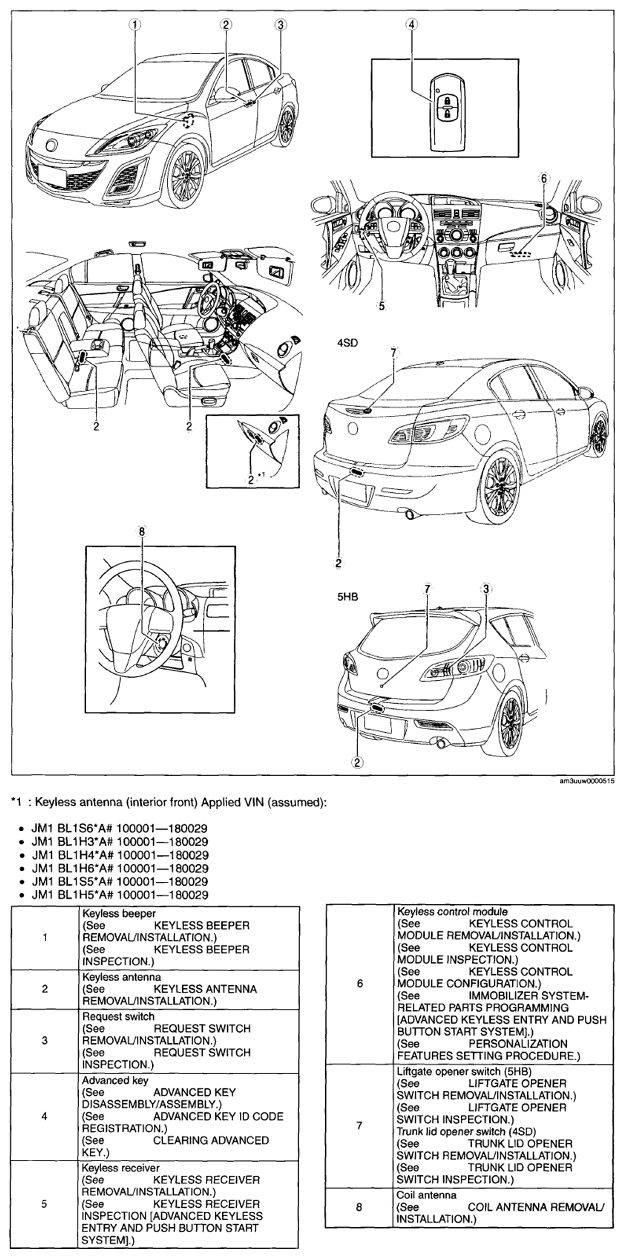

Fig 1: Identifying Security And Locks Parts Location - Advanced Keyless Entry And Push Button Start System/Immobilizer System
G07875372Courtesy of MAZDA MOTORS CORP.
