Request Switch Removal/Installation: Liftgate

  1. Disconnect the negative battery cable.
  2. Remove the inboard light. (See INBOARD LIGHT REMOVAL/INSTALLATION ).
  3. Remove the screw.

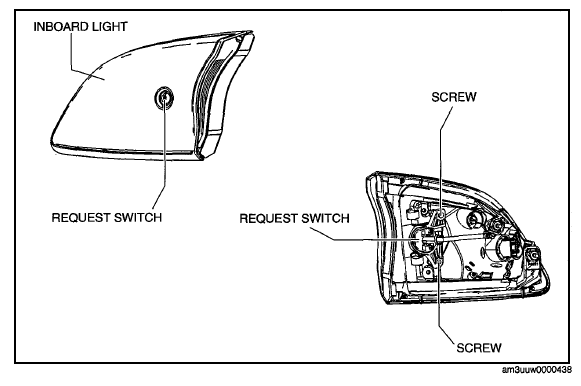

    Fig 1: Identifying Request Switch, Inboard Light And Screws
    G06732003Courtesy of MAZDA MOTORS CORP.
  4. Remove the request switch.
  5. Install in the reverse order of removal.
