Request Switch Inspection: Liftgate

  1. Disconnect the negative battery cable.
  2. Remove the inboard light. (See INBOARD LIGHT REMOVAL/INSTALLATION ).
  3. Remove the request switch (liftgate). (See REQUEST SWITCH REMOVAL/INSTALLATION ).
  4. Verify the continuity of request switch terminals A and B.

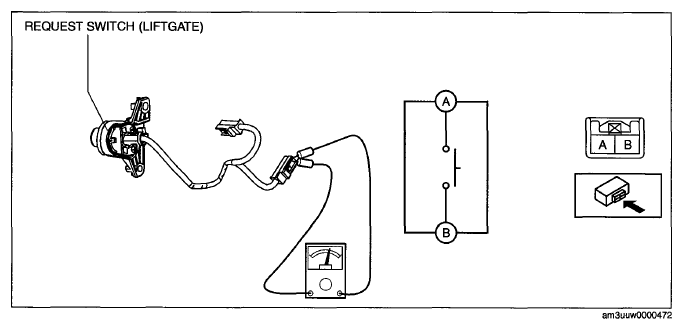

    Fig 1: Checking Continuity Of Request Switch Terminals A And B
    G06732007Courtesy of MAZDA MOTORS CORP.
  5. Verify that the continuity is as indicated in the table.
    Fig 2: Request Switch Terminals Continuity Chart
    G07875507Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the request switch.
