Liftgate Opener Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION ).
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION ).
    3. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION ).
    4. Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION ).
  3. Disconnect the connector.
  4. Pull out the retainer in the direction of the arrow shown in the figure.

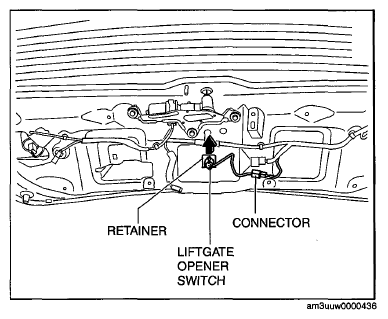

    Fig 1: Pulling Liftgate Opener Switch Retainer
    G06731992Courtesy of MAZDA MOTORS CORP.
  5. Remove the liftgate opener switch.
  6. Install in the reverse order of removal.
    Fig 2: Removing Liftgate Opener Switch
    G06731993Courtesy of MAZDA MOTORS CORP.
