Keyless Receiver Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
    4. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
    5. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
    6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION ).
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION ).
    8. Console (See CONSOLE REMOVAL/INSTALLATION ).
  3. Set the hood release lever out of the way. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION ).
  4. Remove the lower panel, (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION ).
  5. Remove in the order indicated in the table.

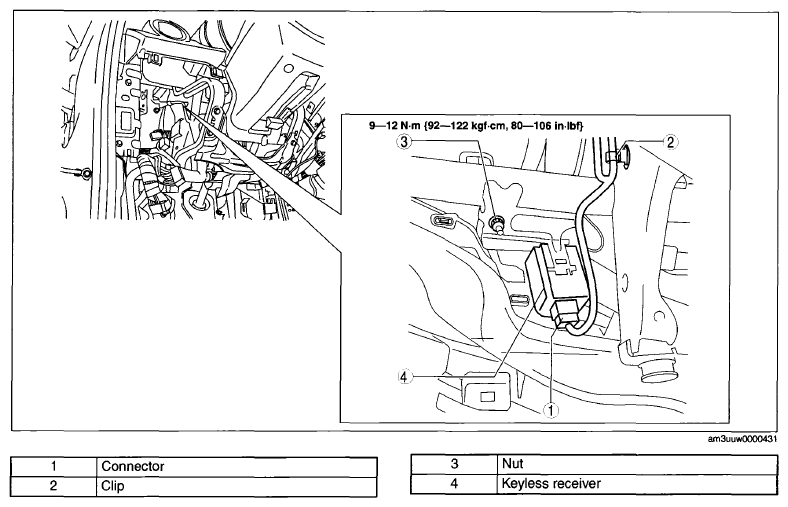

    Fig 1: Keyless Receiver, Connector, Clip And Nut With Torque Specifications
    G07875517Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
