Keyless Beeper Removal/Installation

  1. Disconnect the negative battery cable.
  2. Slightly bend back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION ).
  3. Disconnect the connector.

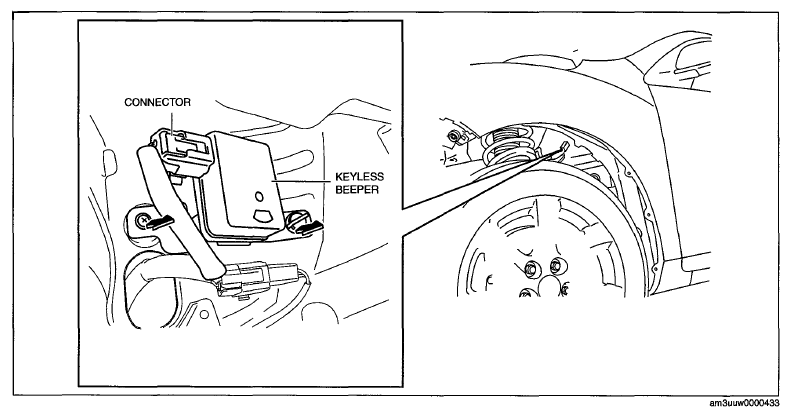

    Fig 1: Disconnecting Keyless Beeper Connector
    G06732014Courtesy of MAZDA MOTORS CORP.
  4. Remove the keyless beeper in the direction of the arrow shown in the figure.
  5. Install in the reverse order of removal.
