Vehicle Interior, Center

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
    2. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
    3. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION ).
    5. Side wall (See SIDE WALL REMOVAL/INSTALLATION ).
    6. Center panel (See CENTER PANEL REMOVAL/INSTALLATION ).
    7. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION ).
    8. Rear heat duct (1). (See REAR HEAT DUCT REMOVAL/INSTALLATION ).
  3. Disconnect the connector.
  4. Remove the nuts.
  5. Remove the keyless antenna.
  6. Install in the reverse order of removal.

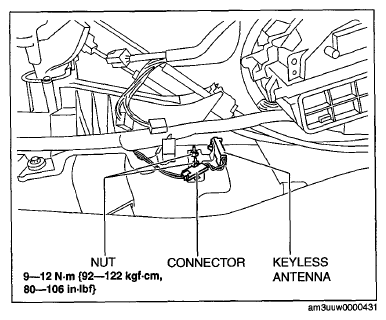

    Fig 1: Keyless Antenna Connector And Nuts With Torque Specifications (Center)
    G06732010Courtesy of MAZDA MOTORS CORP.
